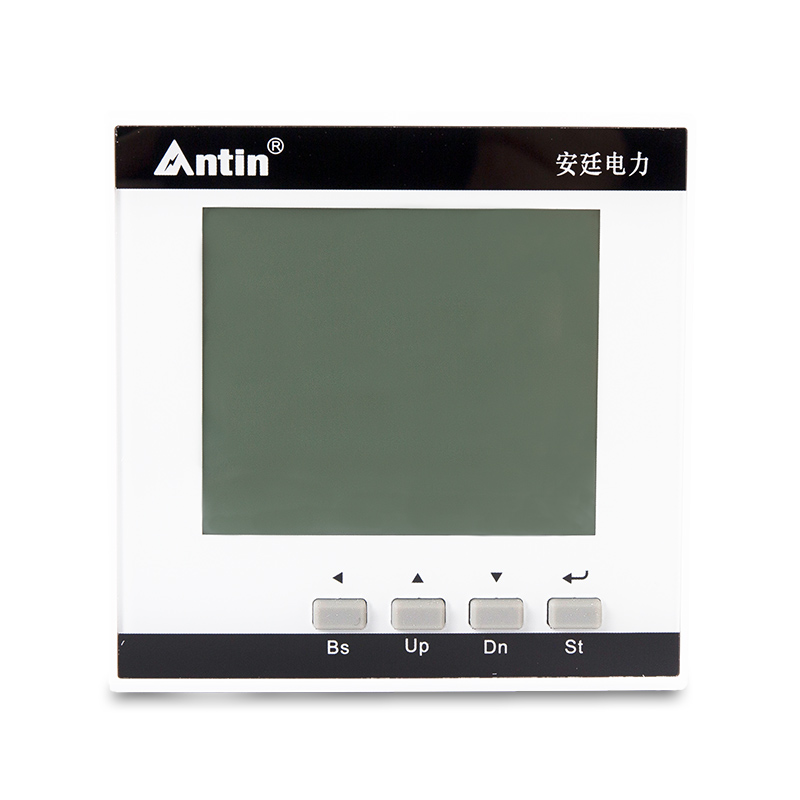

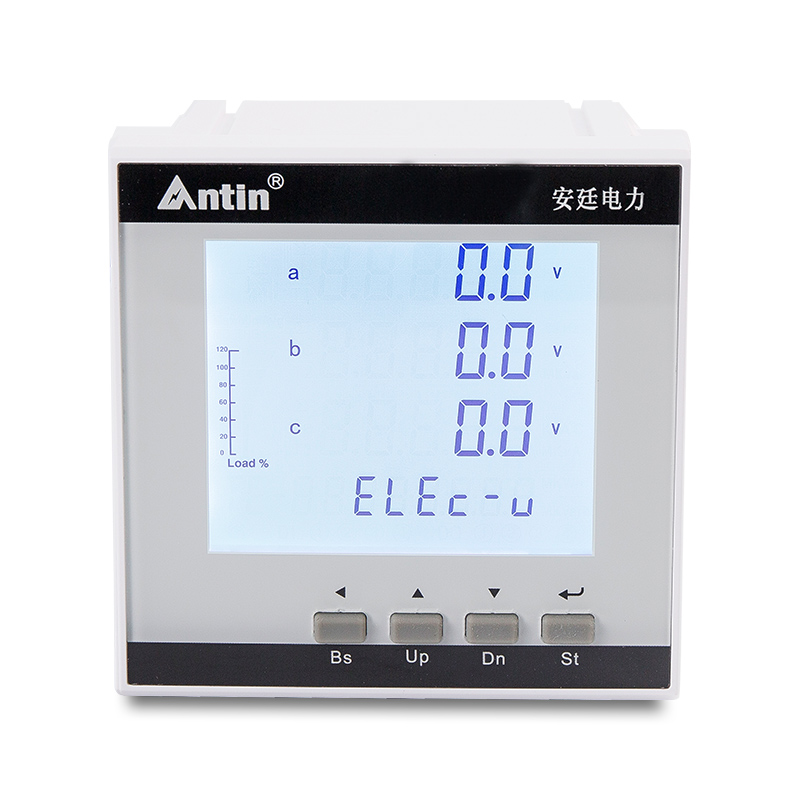

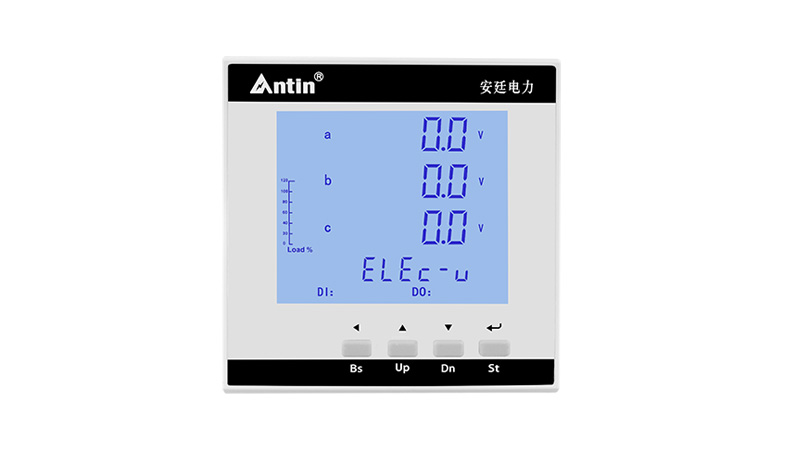

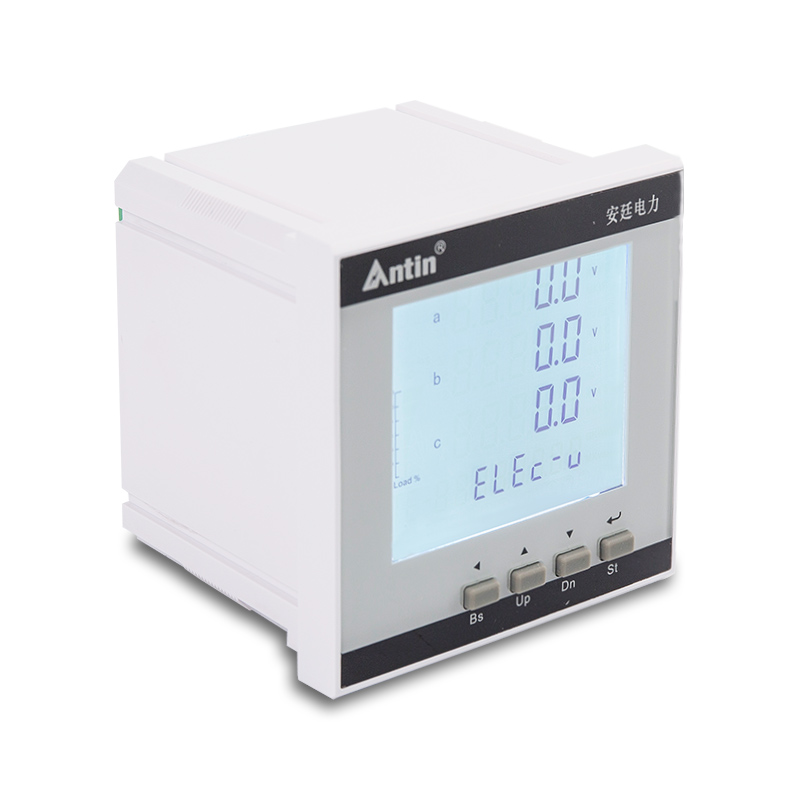

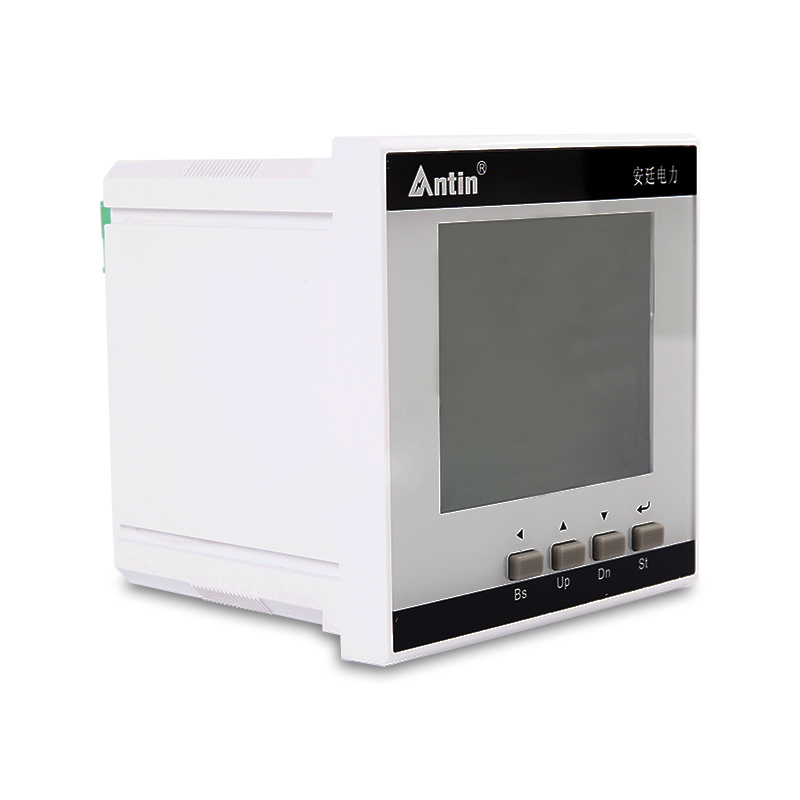

At180y Series Digital Multi-Function Harmonic Anyzer

Opus

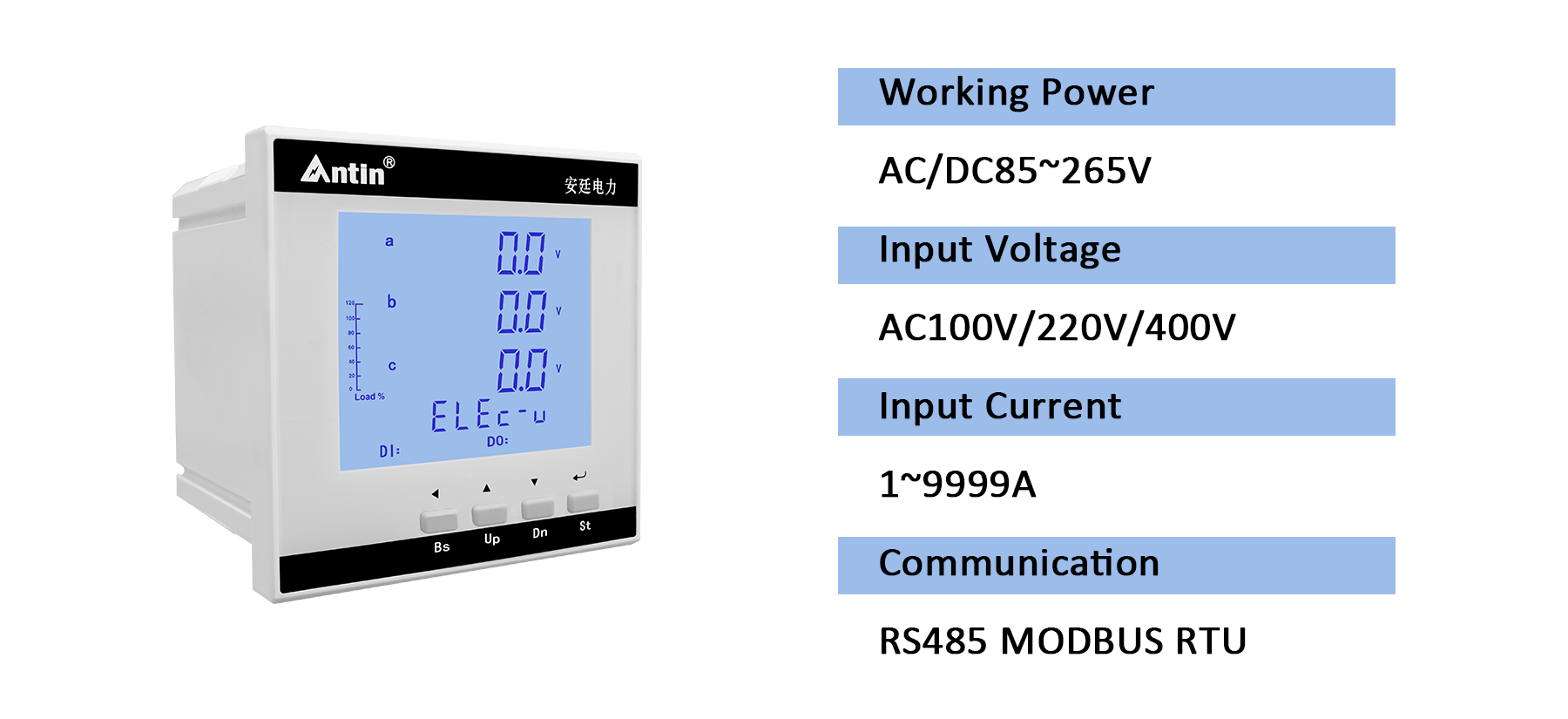

Operating range

AC / DC85 ~ 265v

Potentiam consummatio

≤5w

AC initus

Input voltage rated

AC 100V, 220v, 400V

ONERO

1.2Times continua, 2Times (10s)

Potentiam consummatio

<0.4VA / Phase

Impedimentum

≥200kω

Primarius

1-9999A

Secundarium input

1aor5a

Brevis-vicis overcurrent

XX temporibus max. current ad 0,5 s

Potentiam consummatio

<0.2vaphase

Impedimentum

≥0.1ω

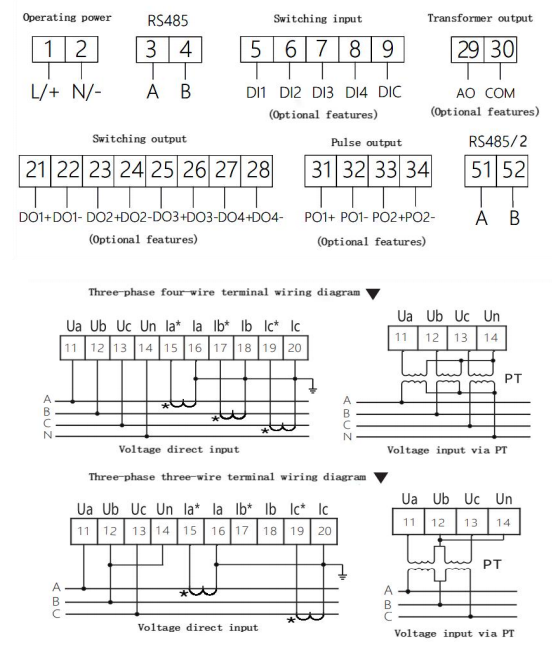

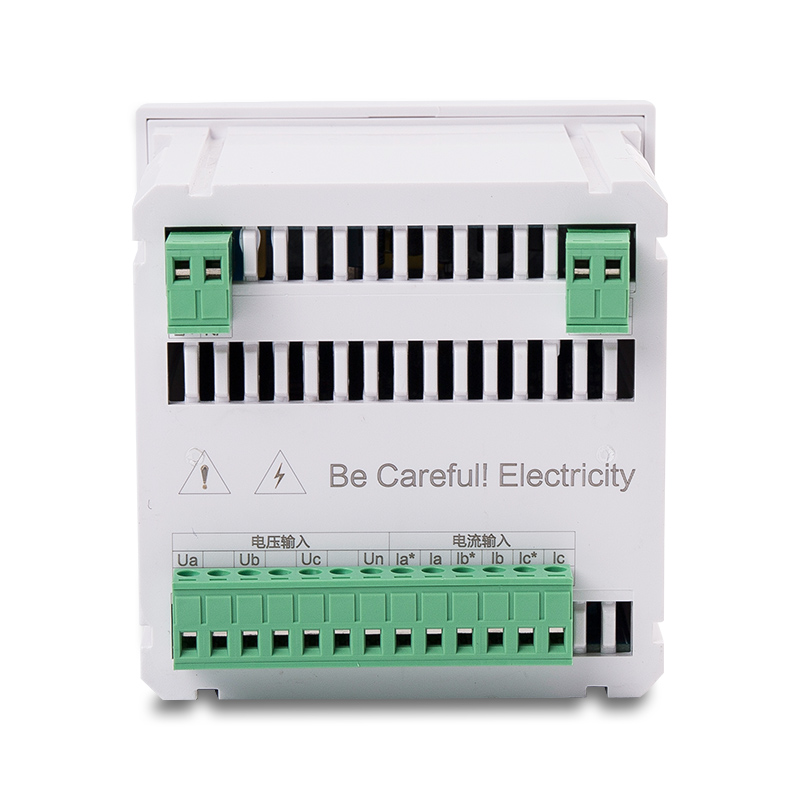

Input-output

Switch initibus

Switch outputs

Portus

Rs4S5

Rtu modbus Accuratio

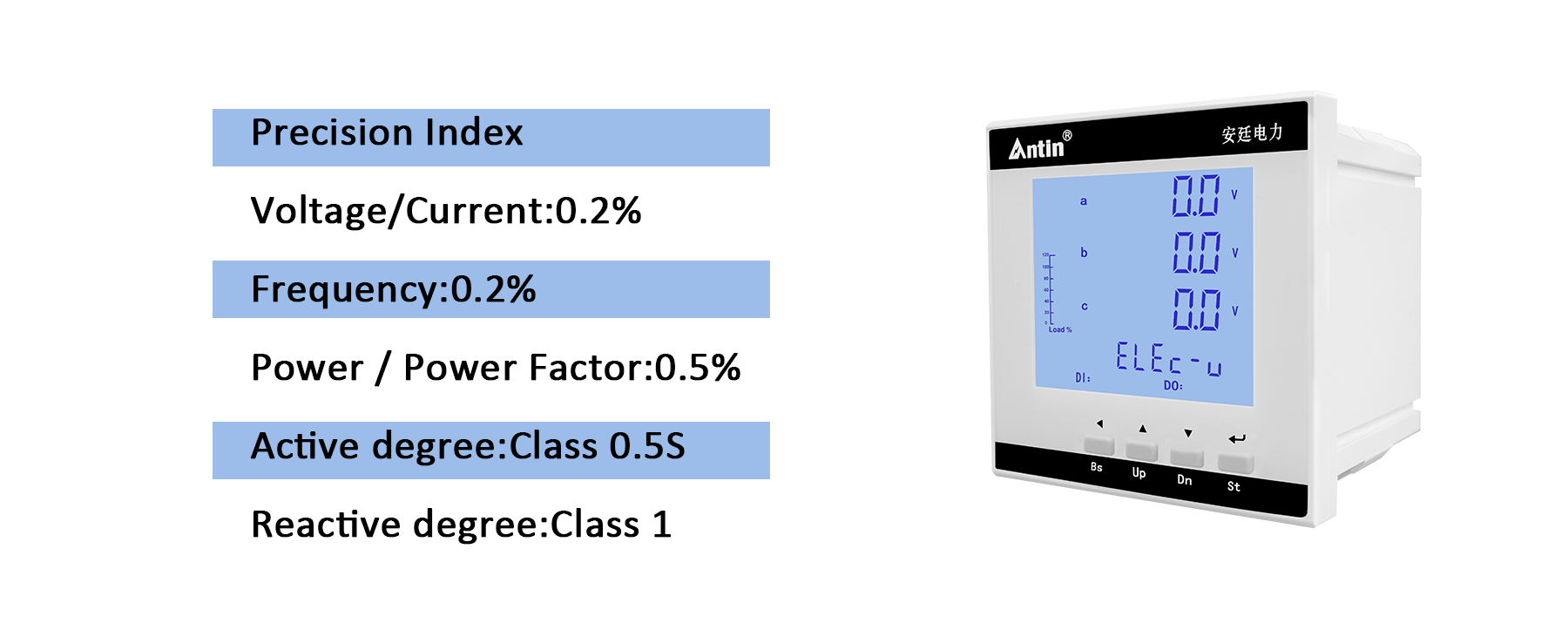

Accuratio

Voltage / Current

0,5%

Frequentia

0,2%

Potentia / Power
Elementum

I%

Activa

Reactivum potentia

Class2

Operatio environment

Operating temperatus

-25 ℃ ~ LV ℃

Storage temperatus

-40 ℃ ~ LXX ℃

Operating Umor

≤90% RH, non-condensing, nec corrosios caeli

Umor repono

≤95% RH, non-condensing, nec corrosios aere

Altitudo

≤2000m

Electromagnetic compatibility perficientur

Electrostatic missionem

RF Field vires
Mollities

Classis ⅲ (GB / T 17626.3 IEC 61000-4-3)

Electrical Fast transiens / erupit test

Surge test

Classis IV (GB / T 17626.5 IEC 61000-4-5)

Conducted susceptibilitatem test

Classis ⅲ (GB / T 17626.6 IEC 61000-4-6)

Power
Frequency Magnetic agro Suscipitability
Probo

Oscillandi undam immunitatem

Classis ⅲ (GB / T 17626.12 IEC 61000-4-12)

Electro emissionem fines

Secundum (GB / T 14598.16 IEC 60255-25)

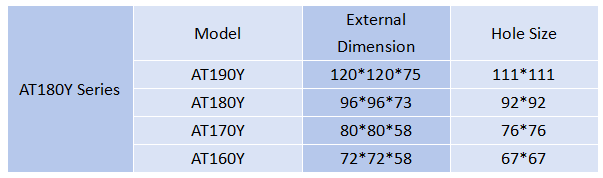

PROPRESSUS

H * w * d

96mm × 96mm × 75mm
