exemplar：Ats180g

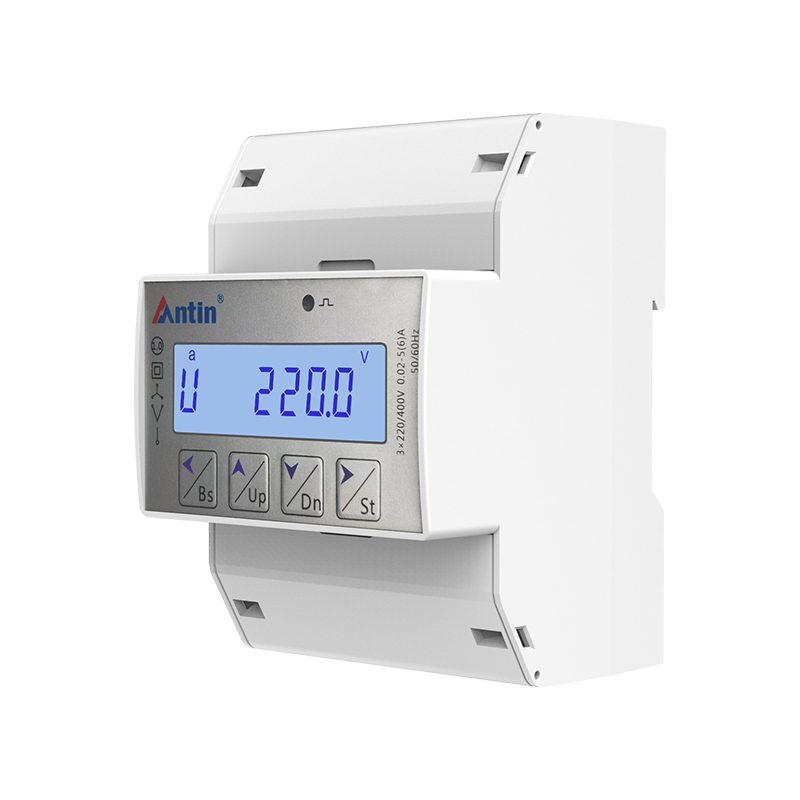

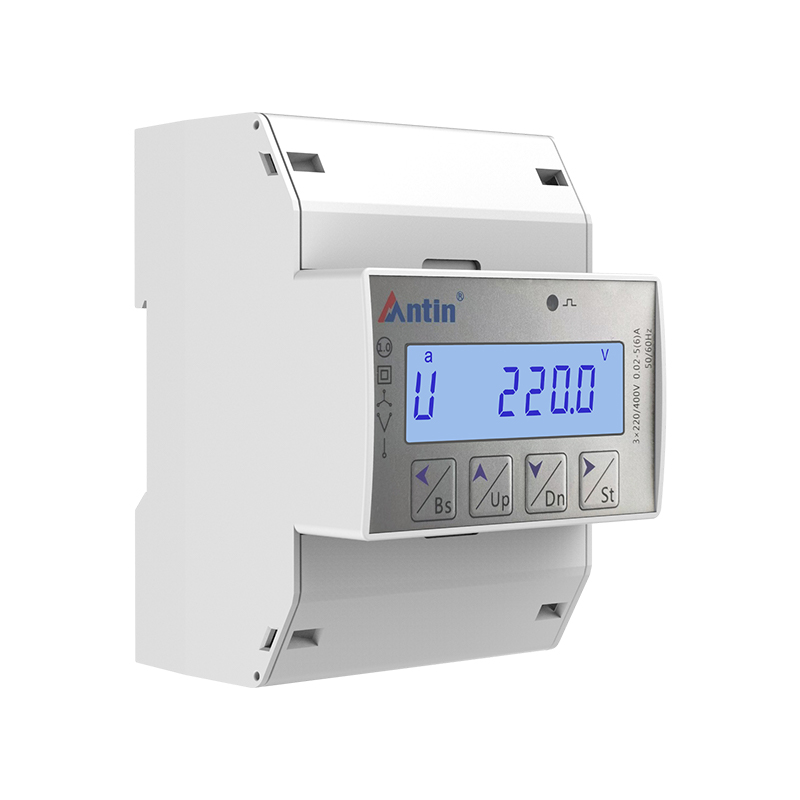

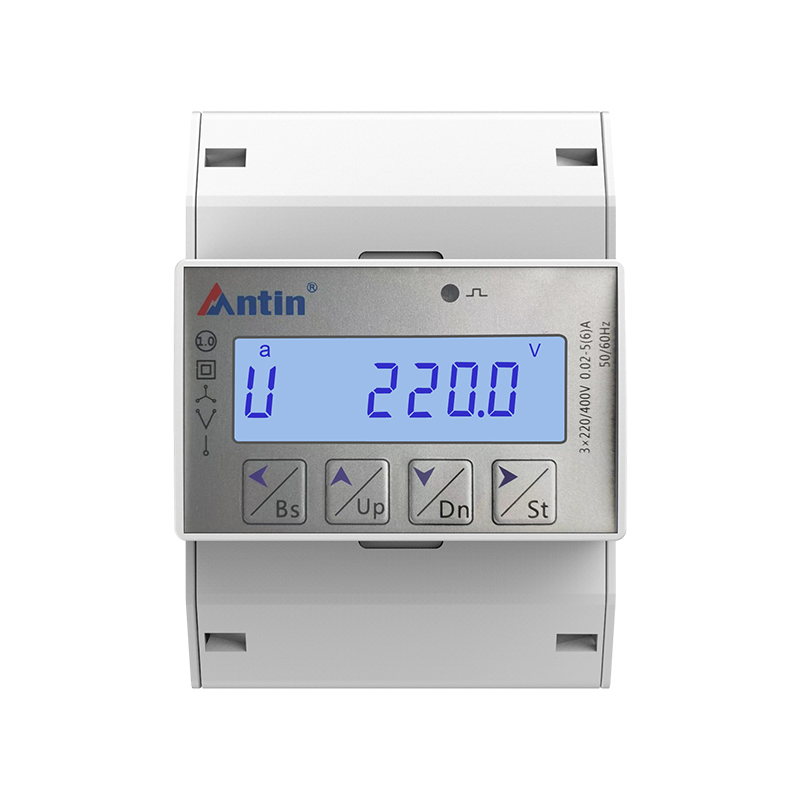

ATS180G Series Smart Energy Safety Cras Fabrica

In ATS180 Series Smart Energy Safety Cras Cogitationes sunt disposito ad collectio et analysis de potentia parametri et electrica metering, supporting et mensurae et analysis de amplis virtutis parametri. In Rs485 Communication interface permittit enim facile remotis data Lectio, dum LCD ostentationem concedit facile loci viewing et occasum variis mensura parameters.

Antecedens:Ats180y dolor industria salutem adipiscing fabrica

Proximum:Nullus proximus articulum

exemplar
Features
modulus
magnitudine

Opus
Operating range	AC / DC85 ~ 265v
Potentiam consummatio	≤5w
AC initus
Input voltage rated	AC 100V, 220v, 400V
ONERO	1.2Times continua, 2Times (10s)
Potentiam consummatio	<0.4VA / Phase
Imminedance initus current	≥200kω
Primarius	1-9999A
Secundarium input	1a vel 5a
Brevis-vicis overcurrent	XX temporibus max. current ad 0,5 s
Potentiam consummatio	<0.2vaphase
Impedimentum	≥0.1ω
Input-output
Switch initibus	Arida contactus initus, opto-solited
Switch outputs	Relay output; Ulla potestas metum potest
Portus
Rs485	Rtu modbus
Accuratio
Voltage / Current	0,5%
Frequentia	0,2%
Power / Power Elementum	I%
Activa	Class0.5s
Reactivum potentia	Class2
Operatio environment
Operating temperatus	-25 ℃ ~ LV ℃
Storage temperatus	-40 ℃ ~ LXX ℃
Operating Umor	≤90% RH, non-condensing, nec corrosios caeli
Umor repono	≤95% RH, non-condensing, nec corrosios aere
Altitudo	≤2000m
Electromagnetic compatibility perficientur
Electrostatic missionem	Classis ⅳ (GB / T 17626.2 IEC 61000-4-2)
RF Emf Radiation immunitas	Classis ⅲ (GB / T 17626.3 IEC 61000-4-3)
Fast transients erupit / ruptis	Classis ⅳ (GB / T 17626.4 IEC 61000-4-4)
Surge test	Classis IV (GB / T 17626.5 IEC 61000-4-5)
Conducted susceptibilitatem Probo	Classis ⅲ (GB / T 17626.6 IEC 61000-4-6)
Power frequency magnetica agro Susceptibility Test	Classis ⅳ (GB / T 17626.8 IEC 61000-4-8)
Oscillandi undam immunitatem	Classis ⅲ (GB / T 17626.12 IEC 61000-4-12)
Emissionem electro limio	Secundum (GB / T 14598.16 IEC 60255-25)
Electrica proprietatibus proprietatibus
Dielectric fortitudinem	2KV working frequency voltage, I min (GB / T (XIII) DCCXXIX)
Nulla resistitur	≥100mω (GB / T (XIII) DCCXXIX)
Inpulsa voltage	5Kv, XII / 50μs (GB / T (XIII) DCCXXIX)
